Process Protective Film Series
It Has Excellent Applicability, and can Provide Customized Products Such as Roll Material or Further Die Cutting and Punching.

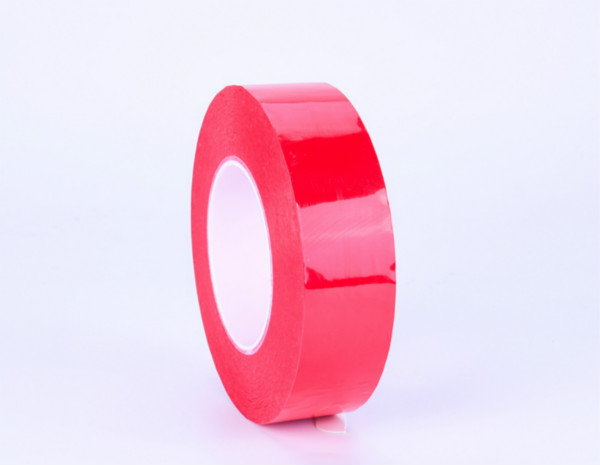

Single Layer Protective Film
The product is mainly composed of a polyester film and a silicone pressure-sensitive adhesive.
The product has excellent high and low temperature resistance, excellent conformability, and provides excellent abrasion resistance and corrosion resistance under high dynamic bending conditions.
Customized products such as coils or further die-cutting and punching can be provided. Meet environmental requirements. Widely used in metal panels, plastic panels, glass panels, etc.
* Stable adhesion, easy peeling, no residual glue;
* Various colors and thickness options, good punching performance;
Low cost, thickness, adhesion, color can be customized according to requirements;
| Item | Unit | Eigenvalues | Testing Method |
|---|---|---|---|
| Apperance | None | Transparent, Clean and Scratch-free | Visually |
| Peel Strength | kg/25mm | Customized | ASTM D3330 |
| Retention Force | Hour | >24 | ASTM D3654 |
| Breaking Strength | N/10mm | 50 | ASTM D3759 |
| Elongation | % at Break | 6 | ASTM D3759 |
| Heat Resistance | ℃ | -10~120 | GB_32368-2015 |
| X-Y Axis Electrical Resistance | Ω | ≤0.2 | GB_30139-2013 |
| Z- Axis Electrical Resistance | Ω | ≤0.05 | Internal Standard |
| Shielding Effectiveness | dB | >60 | ASTM D4935 |
Storage:
* Shelf life is six months after sale.
* The tape should be stored in a dark place without direct sunlight and heat sources. The storage conditions are 23 ± 5 ℃ and 50 ± 10% humidity.
Usage Attention:
* Remove dirt, dust, oil stains, and moisture from objects before sticking.
* Do not stick it repeatedly. Keep it stuck for several hours after sticking. * Do not stick directly on bumps, rough surfaces and human bodies.
* When using, ask the user to judge whether the product is suitable for the purpose and use it after testing.
* If you have any other questions, please contact us.
Application:
Glass screen, polarizing sheet, foam, graphite sheet, PC / acrylic, metal, plastic, etc.
Printing
Die Cutting
Professionalisme
13 years of R & D and production of industrial electronic materials
8 advanced coating equipment
Class 1000 (Class 100) clean room
Average daily production capacity over 300,000 square meters
What are our strengths?
International Authority Certification
Use of internationally renowned raw material merchants Guaranteed quality and product performance
Quality Assurance
Strict online testing equipment System quality control process Precision quality testing equipment.
International Authority Certification
ISO 9001: 2015
ISO14001: 2015
OHS 18001: 2011
SGS, UL, ROHS, REACH
Service
Worry-free customer service throughout Respond quickly to customer needs Samples made within 48 hours (stock materials) Customized products and services
